Frame Prep and Priming
by Frank Colgoni

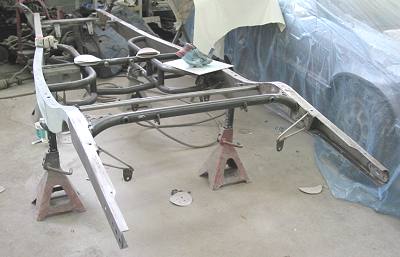

As mentioned in the previous article, we’ve put the body aside and have taken the car completely apart. To get the bare frame ready for the next steps, it needs to be cleaned thoroughly. PPG DX 330 Acryli-Clean is used for this.

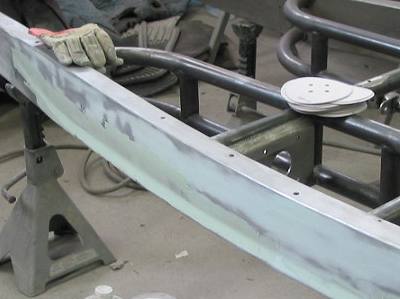

At this point, the frame is ready for any necessary “bodywork”. Being a Deuce, this is an important step as the entire mid section of the outer rail is seen (below the body and above the running board). Also, because of this exposure, the frame on a full-fendered car is usually painted body colour as ours will be. If you’re using expensive material and colour (more on this later), this certainly adds to the overall cost of the job.

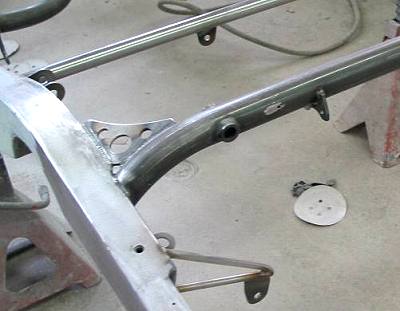

The amount of additional fussing at this point will be dependant upon the condition of the frame you’re using (both stock rails or repro) and what you’re trying to achieve. That is, if you never expect anyone to look under your car, you can get away with a lot less work. In our case, while we aren’t building a “show car”, we do expect it to get some scrutiny so we are planning a moderate amount of work during this step. Thanks to the guys at Lowdown, the welds are excellent and require no attention.

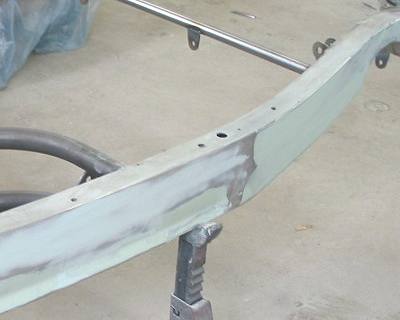

To digress slightly, and as mentioned for the body, it’s amazing how something bare can look great but when evenly coated with a top coat can take on an entirely different topography if you get my gist. And, as the mid section of the Deuce rail has both a compound contour and a bottom ridge or bead, there will likely be some work involved in getting it right.

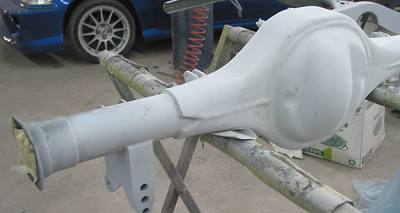

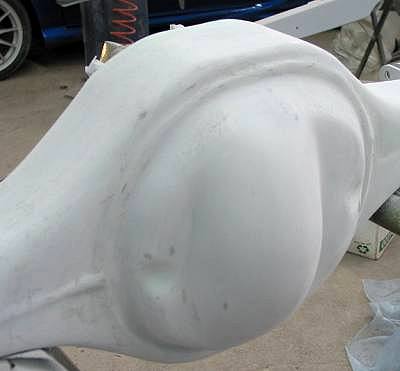

  With the initial bodywork completed, the frame goes back into the booth for a complete covering of PPG DP (40) Epoxy Primer and a shot of PPG K 36 Prima Acrylic Primer Surfacer in those areas that we massaged. Expect some recycle as things will look different again. After we were satisfied and the frame was ready for paint, we attacked the rearend housing so that everything could be put in colour/clear at once. As outlined in our paint materials article 29, we are using PPG Deltron 2000 Basecoat (DBC) and DCU 2001 Concept High Solids Polyurethane Clear.

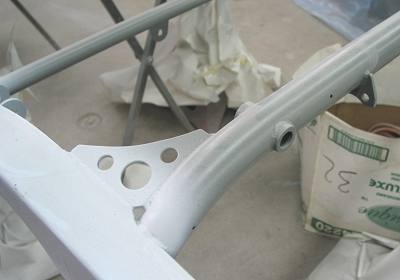

High build primer/surfacer is the lighter colour / the epoxy is the dark

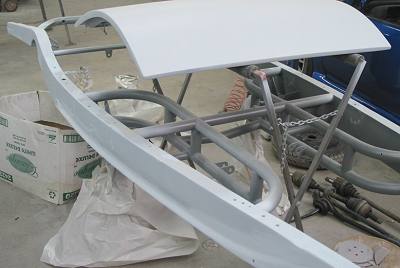

The whole unit had received a coat of epoxy primer before
smoothing and primer/surfacer.
