The Chassis - Part 2

Every Chassis Needs a Well-Hung Rearend

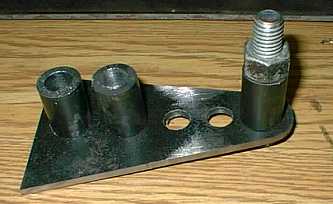

Bob has decided to run a set of parallel leafs in the rear for simplicity and a good ride. Controll will be via a 4-bar setup. Here we see the beginning of the back plate for the 4- bar brackets that will be attached to the axle tubes.
Note: since this article was originally published, Bob decided to go with coilovers out back

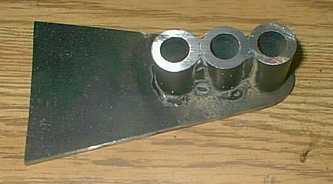

Some adjustment positions added.

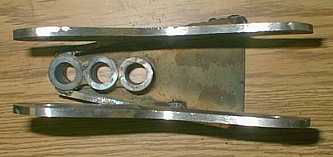

The completed bracket before attachment and some finishing work.

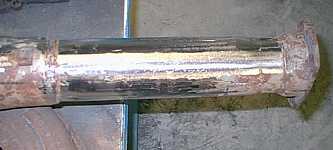

Bob is beginning the cleanup of the axle tube area prior to welding of the bracket(s).

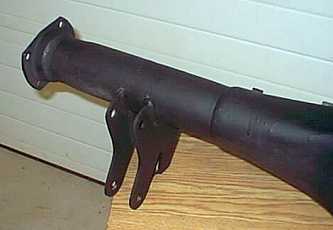

Here's what it looks like attached and in protective paint.

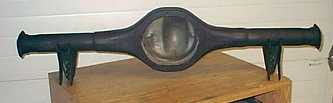

Both sides complete. Next time we'll report on the fabrication of the 4-bars.
